MaxiCharger LCD 3 Phase 4G AC 22kW Socket from £999

Wall-mounted range

Features

  • Fully compliant with the Electric Vehicles (Smart Charge Point) Regulations 2021
  • 5 inch LCD touchscreen showing charging data and with advertising capability
  • PME fault detection incorporated
  • 11kW/22kW single socket output
  • Three-phase connection
  • 4G Connectivity
  • OCPP 1.6 compliant
  • Smart App or Cloud management software
  • Dynamic load balancing and Static load management capabilities
  • OZEV approved
  • 3 year warranty

Purchase online today

£999.00 ex VAT

Request a quote

MaxiCharger LCD 3 Phase 4G AC 22kW Socket from £999

Wall-mounted range

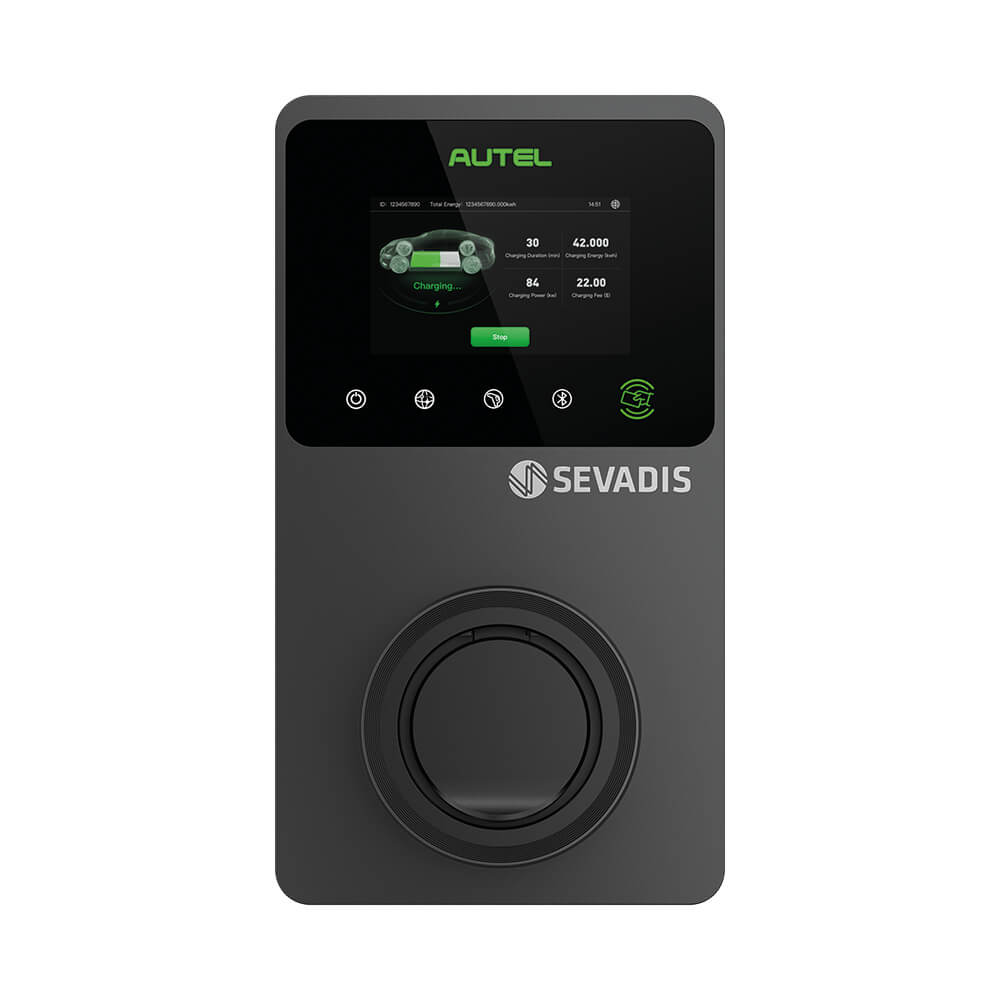

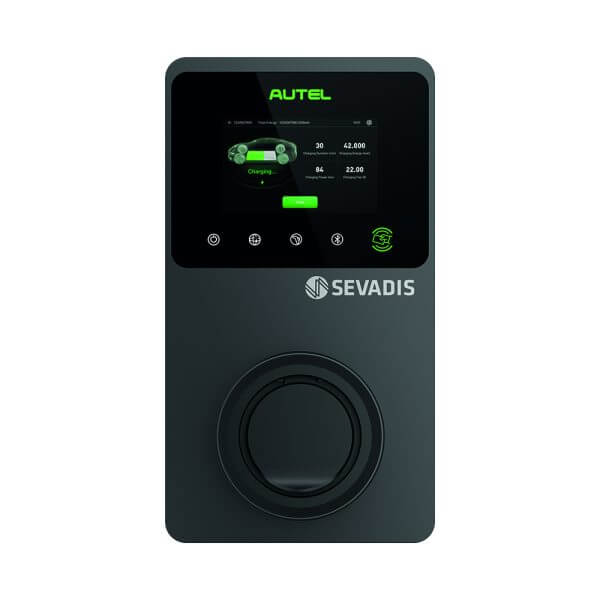

The MaxiCharger LCD three-phase EV charging point offers 11kW/22kW fast charging via its universal Type 2 socket. Complete with a MID meter, allowing charge point operators to record the EV charger’s energy consumption efficiently. This MaxiCharger is also equipped with a 5-inch LCD touchscreen, enabling drivers to understand real-time EV charging behaviour and data, as well as providing businesses the opportunity to utilise the screen for advertising purposes.

With built-in PME fault detection, static load management and dynamic load balancing capabilities, as well as smart functionalities, the MaxiCharger LCD three-phase EV charging point provides a feature-rich solution for commercial requirements.

Technical specification
Charging type Mode 3, Type 2
Charging power 11 kW/22 kW
Rated current 32 A/16 A
Rated frequency 50 Hz
Input/output voltage 400 V+-15%: L1, L2, L3, N, PE
Network type TT, TN
RCD Integrated 6mA DC + 30mA AC leakage detection
Protection Overcurrent, overvoltage, undervoltage, ground fault including DC
residual current protection, integrated surge protection
PME fault detection Incorporated within the unit
