MaxiCharger Pillar 11Kw/22Kw from £1348

Floor-standing range


  • Fully compliant with the Electric Vehicles (Smart Charge Point) Regulations 2021
  • PME fault detection incorporated on single and three-phase
  • Single, dual, three-way and four-way socket options
  • 11 kW/22 kW output per socket
  • Three-phase connection
  • 4G connectivity option available
  • OCPP 1.6 compliant
  • Smart App or Cloud management software
  • Dynamic load balancing and Static load management capabilities
  • OZEV approved
  • 3 year warranty
RRP from: £1098 tooltip
The prices on our website are a guide to help you choose a product that best suits your budget. The prices listed are based on our recommended retail price for one 7.4kW charger excluding delivery. Contact us on 0330 058 7144 or custo[email protected] for installation prices and more options.

Purchase online today

Request a quote

MaxiCharger Pillar 11Kw/22Kw from £1348

Floor-standing range

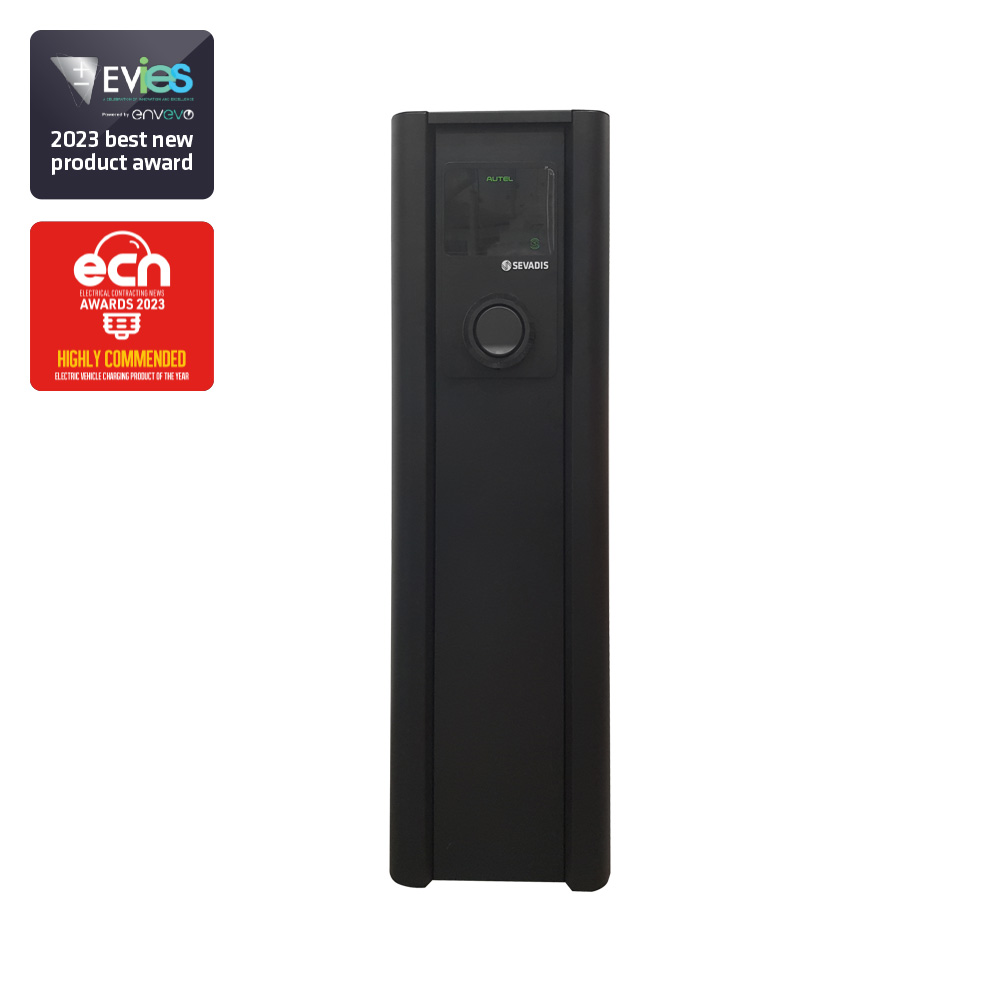

The MaxiCharger Pillar is a floor-standing smart universal Type 2 socket EV charger available in single and dual-socket options with online and offline models. It is OCPP 1.6 compliant, has dynamic load balancing built-in and has PME fault detection incorporated.

The MaxiCharger is robust, aesthetically pleasing and suitable for all environments. It charges up to 7.4 kW on a single-phase connection and 11 kW/22 kW on a three-phase connection. The pillar housing is finished in powder-coated steel with bespoke branding options available. The MaxiCharger is also OZEV approved.

Product CodeProduct Name and Description
EVAUTCSSEVMaxiCharger 3 Phase Smart Online AC Wallbox 11 kW / 22 kW Socket
EVAUTCS4GSEVMaxiCharger 3 Phase Smart 4G AC Wallbox 11 kW / 22 kW Socket
DCSUV2MaxiCharger Single Pedestal Housing
DDCSUV2MaxiCharger Dual Pedestal Housing
Please note that if opting for a dual MaxiCharger Pillar, x2 MaxiChargers are required. The same principle applies to 3-way and 4-way options.
Technical specification
Charging typeMode 3, Type 2
Charging power7.4 kW on single-phase
Rated current32 A/16 A
Rated frequency50 Hz
Input/output voltage230 V+-10%: L1, N, PE
Network typeTT, TN

Integrated 6mA DC + 30mA AC leakage detection


Overcurrent, overvoltage, undervoltage, ground fault including DC residual current protection, integrated surge protection

PME fault detectionIncorporated within the unit
User Interface
Status indicationLED/APP
User interfaceMaxiCharger APP, MaxiCharger Service Software, web portal
ConnectivityBluetooth, Wi-Fi, Ethernet, 4G (SIM not included)
Communication protocolsOCPP 1.6-J
User authentificationAPP, RFID card, QR code
General Characteristics
IP and IK ratingIP54, IK08
Operating altitude2000 m
Operating temperature range-40°C ~ + 55°C
Storage temperature range-40°C ~ + 85°C
Weight3600 g
Dimensions (WxHxD)Unit: 187 mm x 336 mm × 85 mm
Pillar: 362 mm x 1197 mm x 270 mm
Software Update
Software updateAPP or web portal
Certification and Standards
Safety standardsEN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
CertificationCE, UKCA (TUV)
Warranty36 months
