MaxiCharger Pillar LCD 11/22Kw from £1498

Floor-standing range


  • Fully compliant with the Electric Vehicles (Smart Charge Point) Regulations 2021
  • PME fault detection incorporated on single and three-phase
  • Single, dual, three-way and four-way socket options
  • 11 kW/22 kW output per socket
  • Three-phase connection
  • Can be down-rated to single-phase 7.4kW per socket
  • 4G connectivity
  • 5inch LCD touchscreen showing charging data and with advertising capability
  • OCPP 1.6 compliant
  • Smart App or Cloud management software
  • Dynamic load balancing and Static load management capabilities
  • OZEV approved
  • 3 year warranty
RRP from: £1098 tooltip
The prices on our website are a guide to help you choose a product that best suits your budget. The prices listed are based on our recommended retail price for one 7.4kW charger excluding delivery. Contact us on 0330 058 7144 or for installation prices and more options.

Purchase online today

Request a quote

MaxiCharger Pillar LCD 11/22Kw from £1498

Floor-standing range

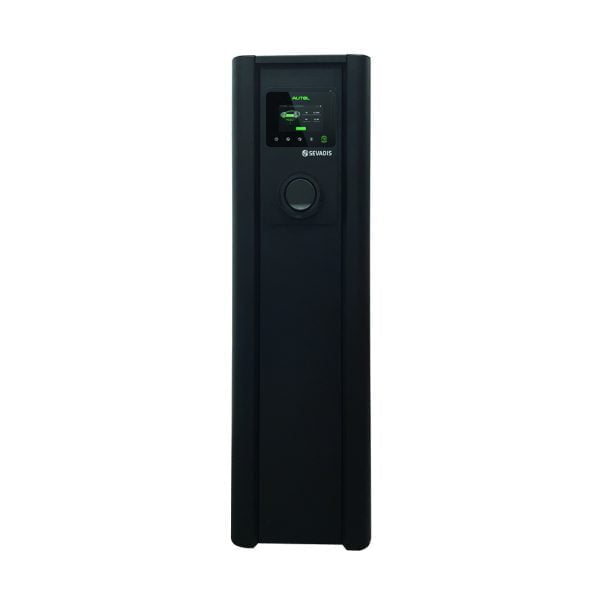

The MaxiCharger Pillar is a floor-standing smart universal Type 2 socket EV charger available in single and dual-socket options with online and offline models. It is OCPP 1.6 compliant, has dynamic load balancing built-in and has PME fault detection incorporated.

The MaxiCharger is robust, aesthetically pleasing and suitable for all environments. It charges up to 11 kW/22 kW on a three-phase connection. The pillar housing is finished in powder-coated steel with bespoke branding options available. The MaxiCharger is also OZEV approved.

Product Code Product Name and Description
EVAUTCS4GLCD MaxiCharger 3 Phase 4G AC WallBox with MID Meter and LCD 11 kW / 22 kW
DCSUV2 MaxiCharger Single Pedestal Housing
DDCSUV2 MaxiCharger Dual Pedestal Housing
Please note that if opting for a dual MaxiCharger Pillar, x2 MaxiChargers are required. The same principle applies to 3-way and 4-way options.
Technical specification
Charging type Mode 3, Type 2
Charging power 11 kW/22 kW on three-phase
Rated current 32 A/16 A
Rated frequency 50 Hz
Input/output voltage 400 V+-15%: L1, L2, L3, N, PE
Network type TT, TN

Integrated 6mA DC + 30mA AC leakage detection


Overcurrent, overvoltage, undervoltage, ground fault including DC residual current protection, integrated surge protection

PME fault detection Incorporated within the unit
User Interface
Status indication LED/APP
User interface MaxiCharger APP, MaxiCharger Service Software, web portal
Connectivity Bluetooth, Wi-Fi, Ethernet, 4G (SIM not included)
Communication protocols OCPP 1.6-J
User authentification APP, RFID card, QR code
General Characteristics
IP and IK rating IP54, IK08
Operating altitude 2000 m
Operating temperature range -40°C ~ + 55°C
Storage temperature range -40°C ~ + 85°C
Weight 3600 g
Dimensions (WxHxD) Unit: 187 mm x 336 mm × 85 mm
Pillar: 362 mm x 1197 mm x 270 mm
Software Update
Software update APP or web portal
Certification and Standards
Safety standards EN/IEC 61851-1, EN/IEC 62196-2, EN/IEC 62955, BS7671
Certification CE, UKCA (TUV)
Warranty 36 months
