Gen2 – SmartBox

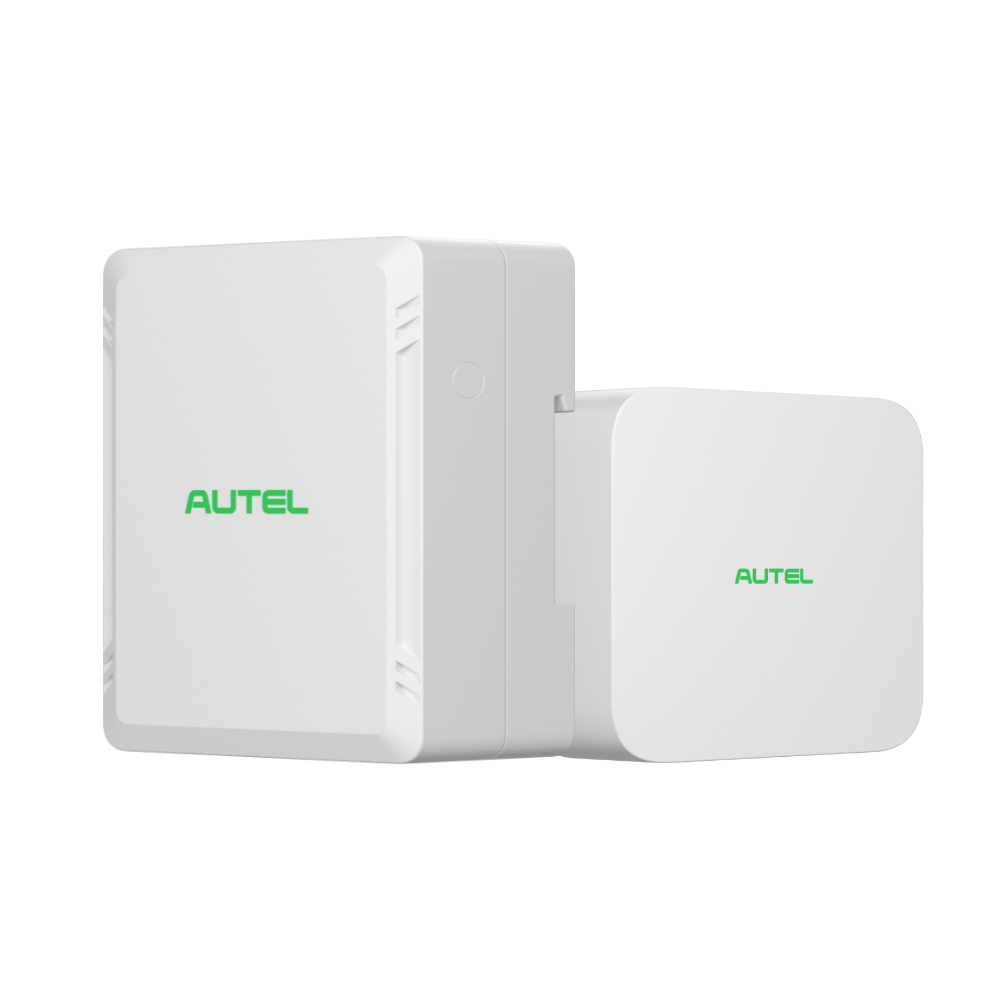

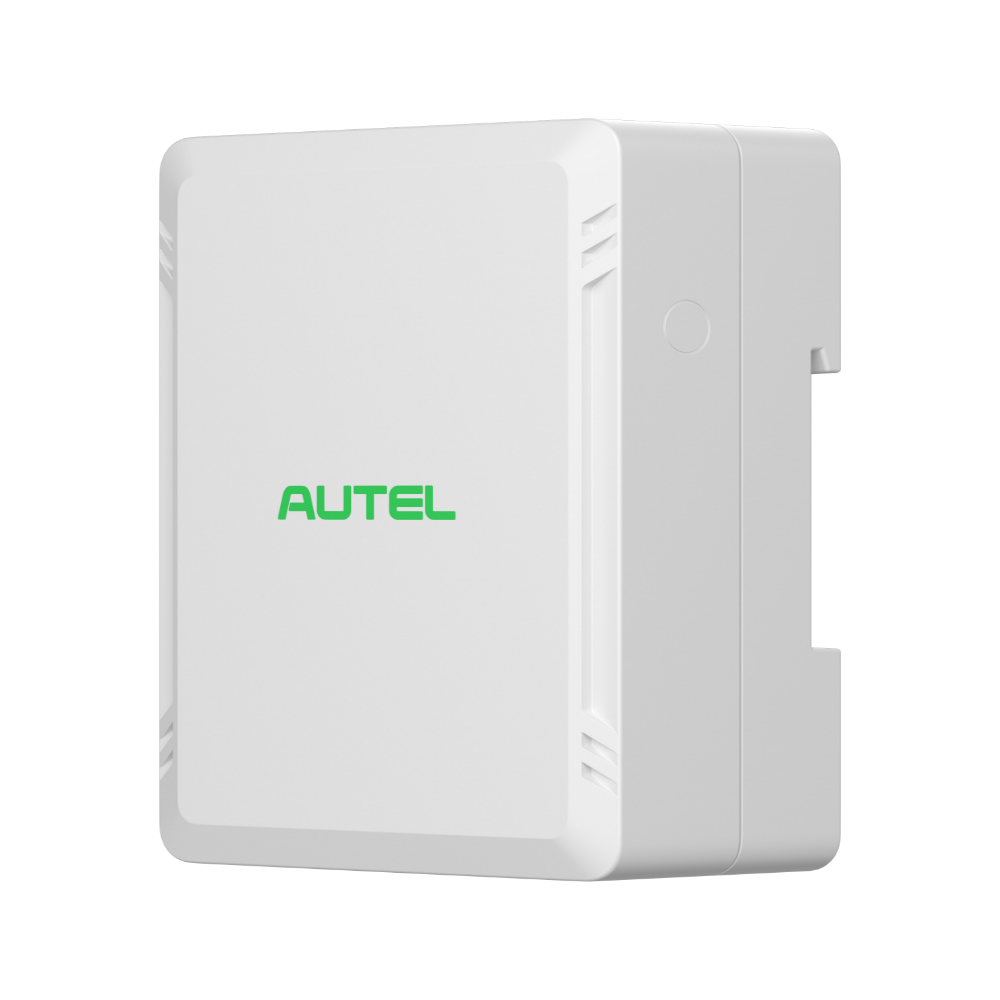

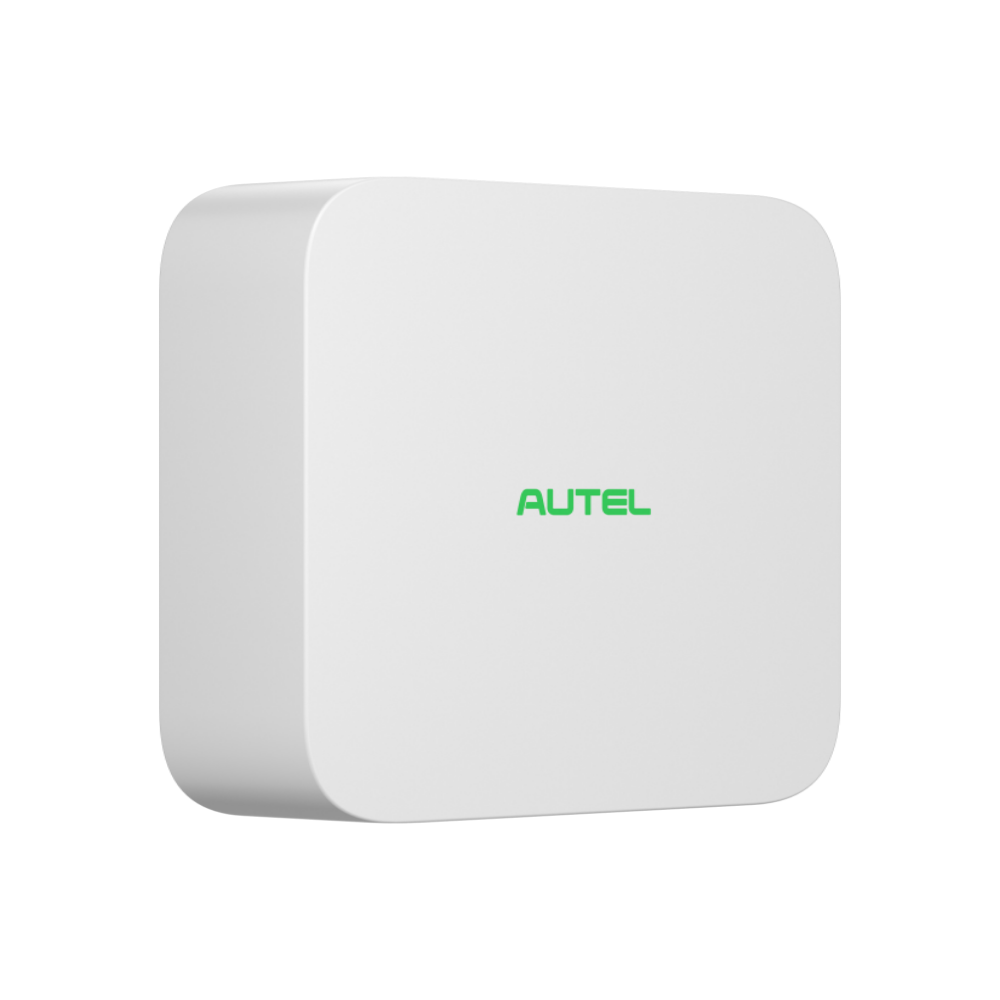

Gen2 Smart Box
The SmartBox is a measuring device that constantly monitors the flow of energy across a site using CT clamps placed around the power cables. By measuring that energy flow in real time, it effectively puts the brain into the energy ecosystem, providing data to other devices and software platforms, enabling control, optimisation and intelligent energy management.
| Technical specification | |
|---|---|
Power Supply | 12-24 VDC, 380 mA |
Dimensions (H x W x D) | 100 x 100 x 27 mm (3.9″ x 3.9″ x 1″) |
Weight | 165 g (0.36 lb.) |
Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
Enclosure Rating | IP20 |
Flammability Standard | UL94-V0 |
Connectivity | Wi-Fi (Frequency: 2.4 GHz, transmit power: 17 dBm; frequency: 5 GHz, transmit power: 12 dBm) Wi-SUN (EU: 868 MHz; US: 915 MHz) Ethernet RS485 NFC Reader |
Codes and Standards | FCC Part 15 Class B (US) |
Software Update | OTA updates via web portal |
PROUDLY AWARDED
Real-Time Site Load Management
Creates load balancing across both AC and DC chargers operating on the same network.
Real-time load balancing dynamically distributes power across chargers to prevent electrical overload.
Optimises available grid capacity, enabling more chargers to be deployed without costly network upgrades.
Maximises available solar generation, intelligently prioritising renewable energy where available.
Wireless CT monitoring connects directly to SmartBox, transmitting site load data to chargers for continuous optimisation.
Supports large charging networks, managing 200+ chargers across a single site.
Enables extended networking of up to 1,000m without additional wiring, simplifying installation.
Integrates with renewable energy, battery storage and generator systems, supporting future-ready charging infrastructure.
